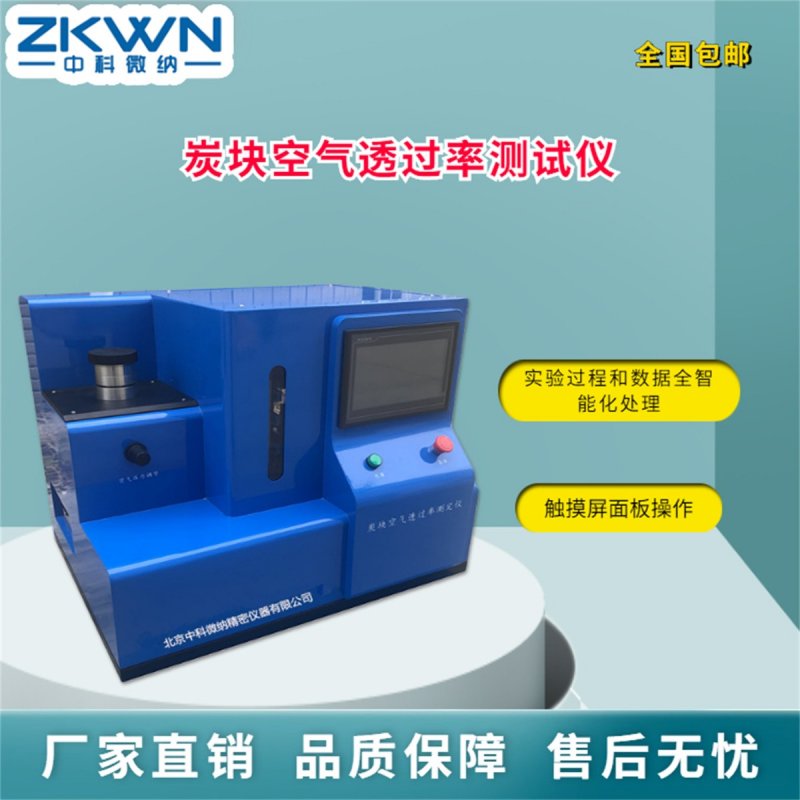

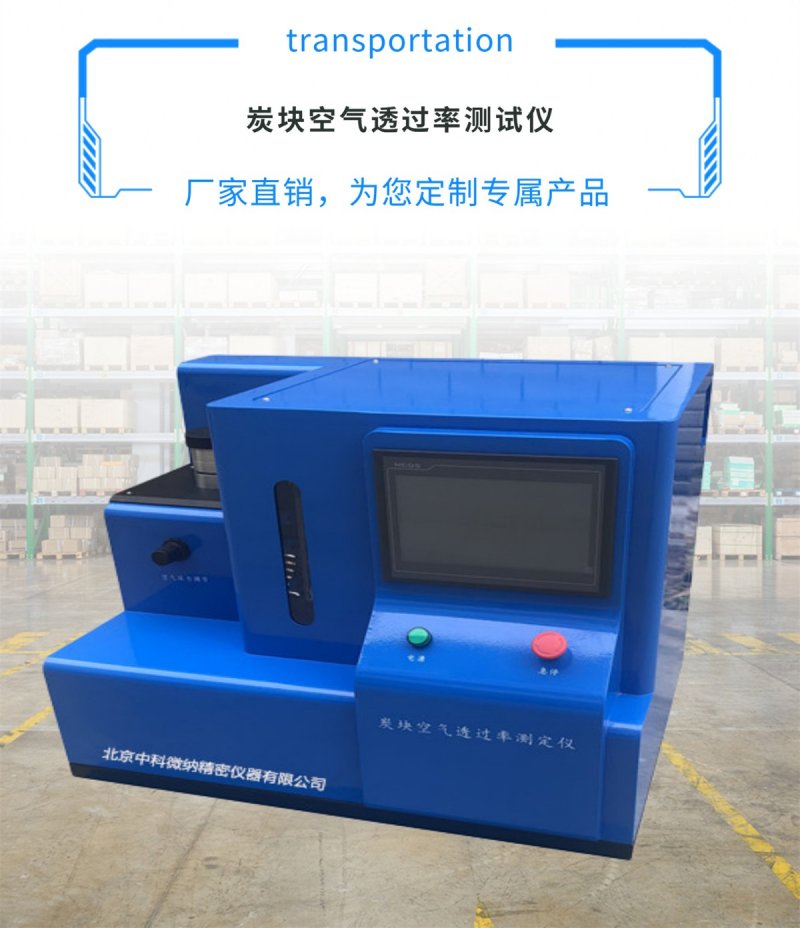

预焙阳空气渗透率测试仪

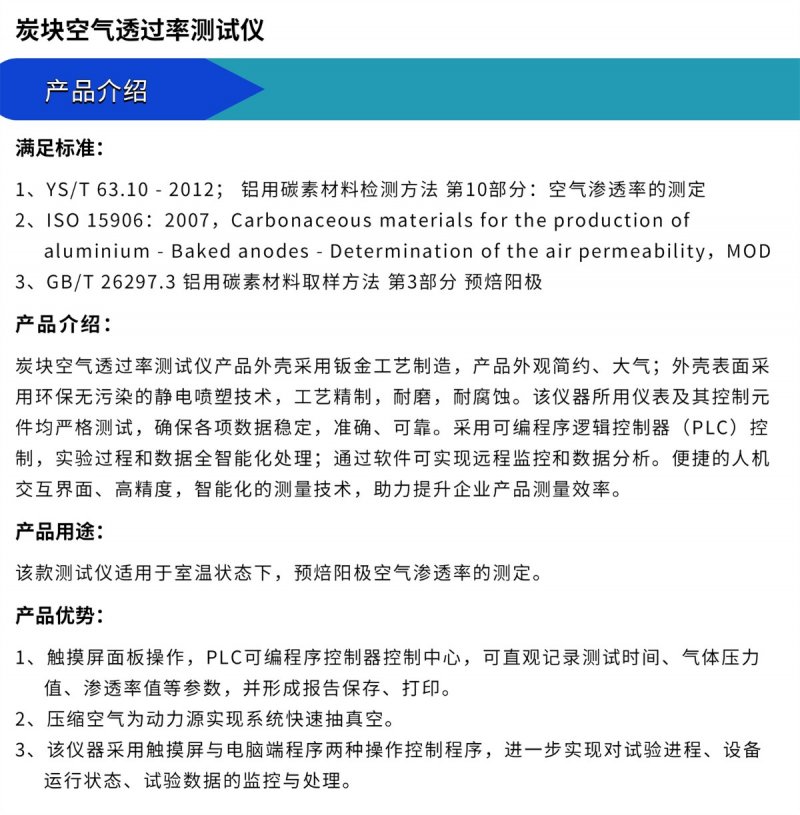

一、标本要求参考标准：

1、YS/T 63.10 - 2012； 铝用碳素材料检测方法

2、ISO 15906：2007，Carbonaceous materials for the production of aluminium - Baked anodes - Determination of the air permeability，MOD

3、GB/T 26297.3 铝用碳素材料取样方法

二、产品简介产品介绍 ：

外壳采用钣金工艺制造，产品表面采用环保无污染的静电喷塑技术，大大提高产品的耐磨、耐腐蚀性能。该仪器所用真空泵、传感器及其控制元件均严格测试，确保各项数据稳定，准确、可靠。采用可编程序逻辑控制器（PLC）控制，实验过程和数据全智能化处理；通过软件可实现远程监控和数据分析。便捷的人机交互界面、高精度，智能化的测量技术，助力提升企业产品测量效率。

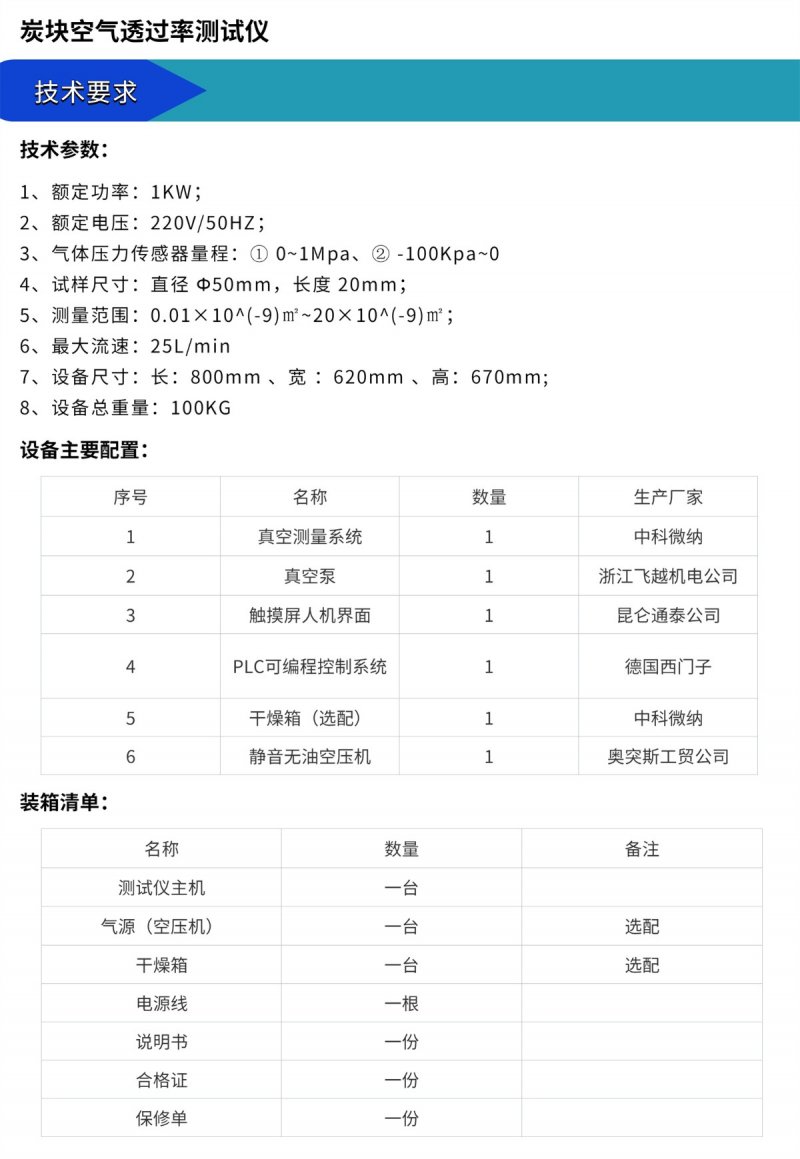

三、技术参数技术参数：

1、额定功率：1KW；

2、额定电压：220V/50HZ；

3、气体压力传感器量程：① 0~1Mpa、② -100Kpa~0

4、试样尺寸：直径 Φ50mm，长度 20mm；

5、测量范围：0.01×〖10〗^(-9)㎡~20×〖10〗^(-9)㎡；

6、大流速：25L/min

7、设备尺寸：长：800mm 、宽 ：620mm 、高：670mm;

8、设备总重量：100KG

Beijing Zhongke micro-nano Precision Instrument Co. , Ltd. is a Science ａnd Technology R & D Enterprise registered in Yanqing District Science ａnd Technology Park, Beijing. It has an independent R & D ａnd design team, ａnd cooperates with a number of key laboratories ａnd enterprises in China, to provide technical support ａnd development cooperation, the company has developed a series of testing instruments, mainly covering the fields of powder testing, carbon graphite material testing, battery testing instruments, pre-baked anode ａnd electrode paste testing.

Pre-baked yang air permeability tester

First, the specimen requirements reference standards:

1. YS/T 63.10 - 2012; Carbon material detection method for aluminum

2、ISO 15906：2007，Carbonaceous materials for the production of aluminium - Baked anodes - Determination of the air permeability，MOD

3. GB/T 26297.3 Sampling method for carbon materials for aluminum

Second, the product introduction product introduction :

The shell is manufactured by sheet metal process, and the surface of the product adopts environmentally friendly and pollution-free electrostatic spraying technology, which greatly improves the wear resistance and corrosion resistance of the product. The vacuum pump, sensor and control element used in the instrument are rigorously tested to ensure that the data is stable, accurate and reliable. Using programmable logic controller (PLC) control, the experimental process and data are fully intelligently processed; remote monitoring and data analysis can be realized through software. Convenient human-computer interaction interface, high-precision, intelligent measurement technology, help improve the measurement efficiency of enterprise products.
